EZ synchronous servo motors
stoerer ez81 en

Power density redefined: Synchronous Servo Motors.

Super compact, maximum torque and combined with high dynamics! This characterizes our two powerhouses: The synchronous servo motors from the EZ series.

In contrast with comparable motors, STOBER has succeeded in increasing the power of the EZ engines enormously while noticeably reducing the overall length at the same time. In addition, all synchronous servo motors are available with a wide variety of encoders and holding brakes.

BENEFITS

With their EZ synchronous servo motors, STOBER offers you brushless, permanent-magnet and electronically commutated motors with a range of different power profiles.

The stator and rotor components are designed in different versions with an energetically optimal form. The result is an extremely low torque ripple and a high power density.

The design of both series of synchronous servo motors is so impressive because of the diverse range of variants and interfaces.

The motors are available in different lengths and sizes and are generally used for direct attachment without coupling on all coaxial, offset helical and right-angle gearboxes.

The basic requirement for the very short design is to use orthocyclic linear tooth winding. This special process allows for the stator windings to be manufactured with the highest possible copper fill factor.

The result is an approximate 80% increase in the motor rating, with the motor length almost half as long without any loss in performance.

The EZ series is also energy-efficient – thanks to the various integrable encoders, the synchronous servo motors feature the ability to provide only the power actually required for an application without wasting it. In total, the EZ motors offer powerful torque, high dynamics and precise synchronization behavior.

TECHNICAL DATA
Power density:
Price category:
 € € € € €
  • Nominal torque: 0.4 – 91 Nm
  • Stall torque: 0.44 – 100.3 Nm

Find your right fit!
FEATURES
  • Shaft: Solid shaft without feather key
  • Forced ventilation unit: For increasing torque and continuous power or at higher ambient temperatures; also as a retrofit kit
  • Brake: Optional permanent magnet holding brake on the motor’s B side
  • Power interface: Twist-on plug connectors with quick lock; optional mating connectors
  • Encoder interfaces:
    • EnDat® 3
    • EnDat® 2.1/2.2 single-turn, multi-turn
    • One Cable Solution (OCS)
    • Resolver
  • Winding protection: PTC thermistors guarantee thermal winding protection
  • Paint: RAL 9005 Jet black
  • Marks and test symbols: CE and cURus
APPLICATIONS
Industries and Applications

We get your visions moving – in various industries and markets worldwide.

Using a holistic approach for your specific task, we support you with precisely tailored solutions for drives and automation.

Learn more
DOCUMENTS
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Catalog Rack and pinion drives with synchronous servo motorsCatalog Rack and pinion drives with synchronous servo motors044432862024 10EN12.59 MB
Catalog Synchronous servo geared motors EZCatalog Synchronous servo geared motors EZ134424372024 08EN24.09 MB
Catalog STOBER compactCatalog STOBER compact064426552024 10EN9.76 MB
Catalog Drives and automationCatalog Drives and automation124427112024 10EN12.13 MB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Operating manual EZ EZHD EZHP EZS EZM synchronous servo motorsOperating manual EZ EZHD EZHP EZS EZM synchronous servo motors014430322019 05EN441.75 KB
Commissioning instruction EZ motors on Allen-Bradley Kinetix 5500 5700 6500Commissioning instruction EZ motors on Allen-Bradley Kinetix 5500 5700 6500014432442023 04EN1.67 MB
Commissioning instruction EZ motors on Kollmorgen S300 S400 S600 S700Commissioning instruction EZ motors on Kollmorgen S300 S400 S600 S700014432362023 04EN1.64 MB
Commissioning instruction EZ motors on Bosch Rexroth IndraDrive C CsCommissioning instruction EZ motors on Bosch Rexroth IndraDrive C Cs014432352023 04EN1.63 MB
Commissioning instruction EZ motors on Siemens SINAMICS S120Commissioning instruction EZ motors on Siemens SINAMICS S120014432322023 04EN1.64 MB
Commissioning instruction EZ motors on Beckhoff AX5000Commissioning instruction EZ motors on Beckhoff AX5000034431852023 04EN1.73 MB
Commissioning instruction EZ motors on B&R drive controllersCommissioning instruction EZ motors on B&R drive controllers014431842023 04EN1.70 MB
Safety instructions for synchronous servo motors synchronous servo geared motorsSafety instructions for synchronous servo motors synchronous servo geared motors004431042018 07EN74.66 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type

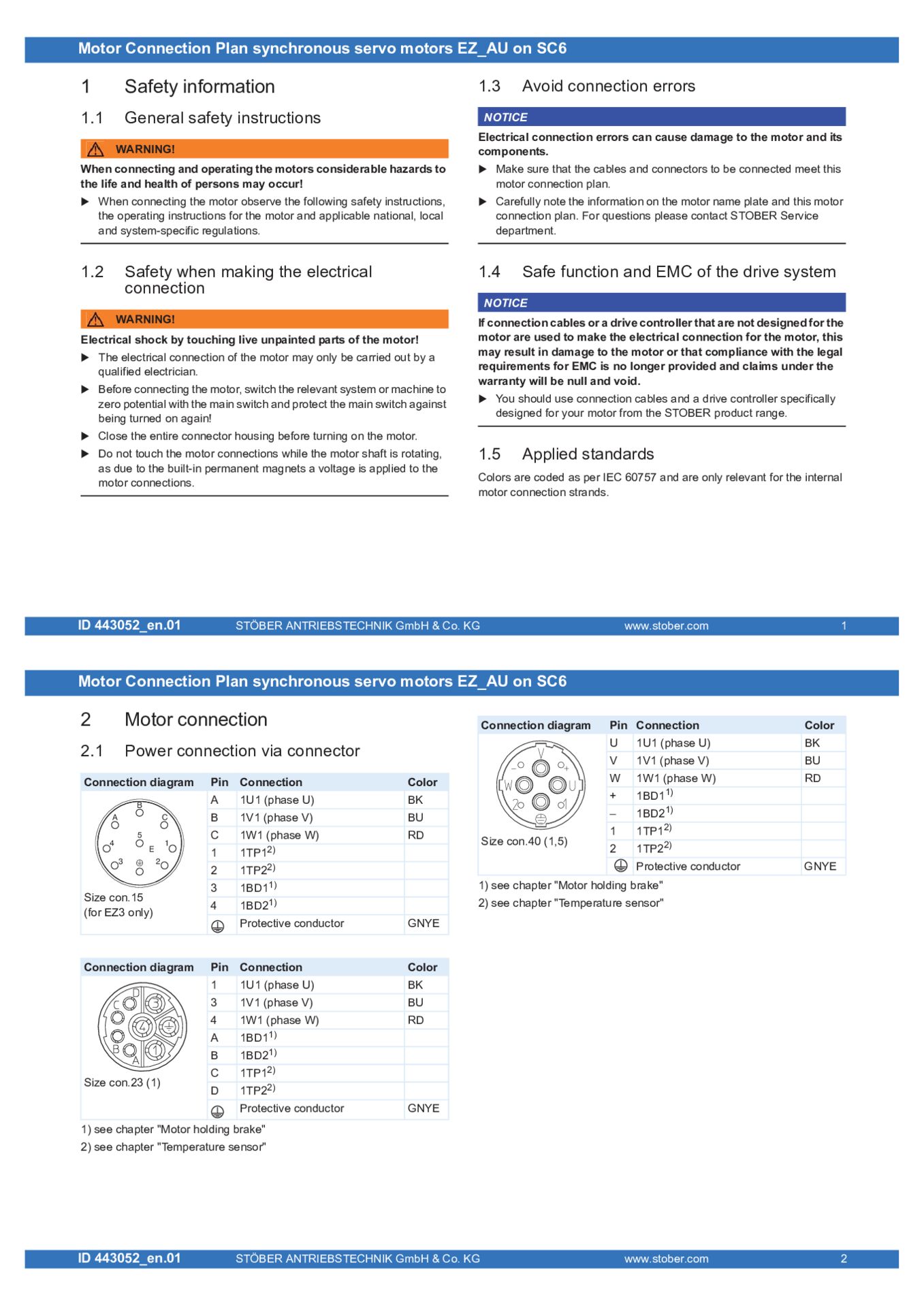

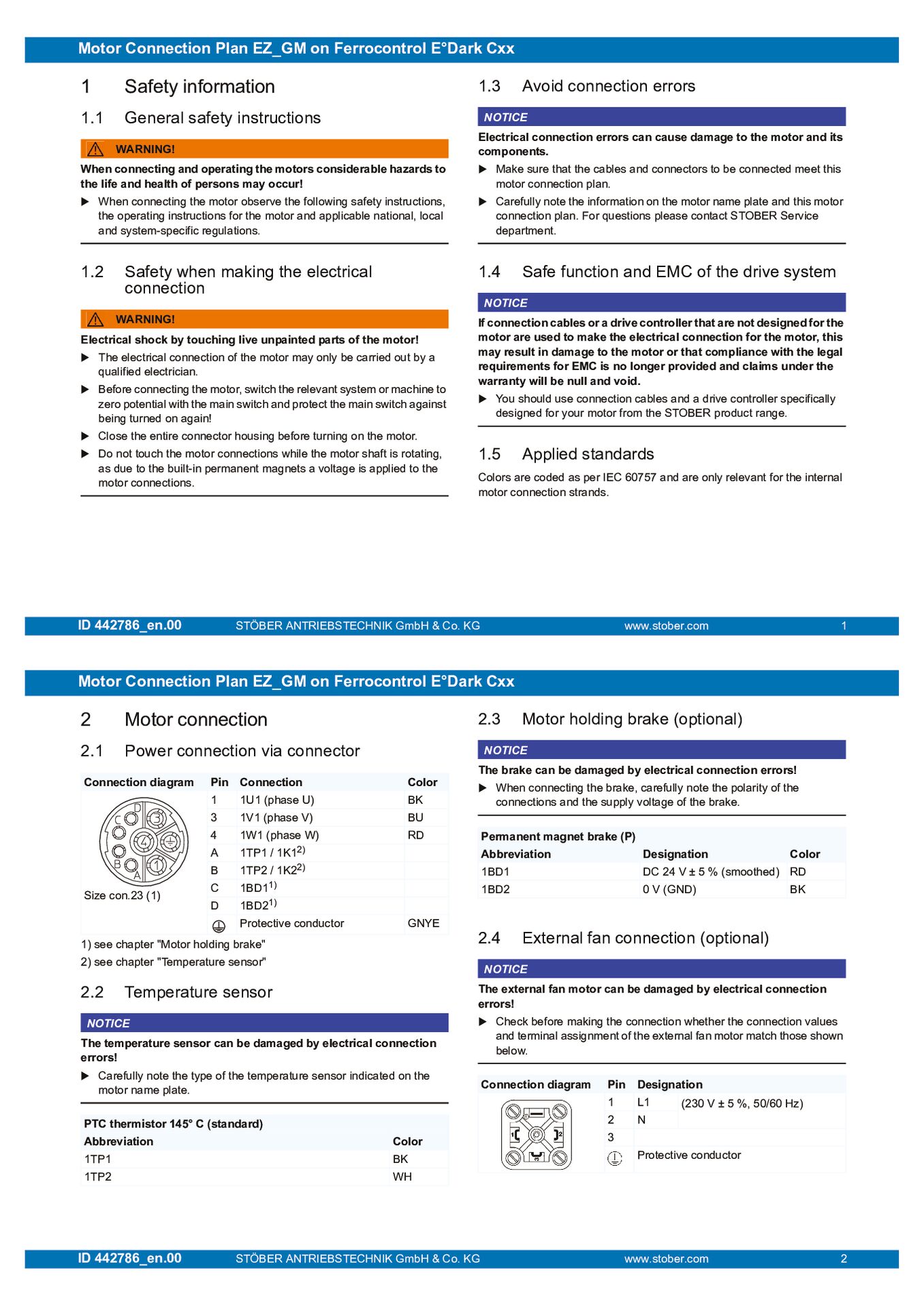

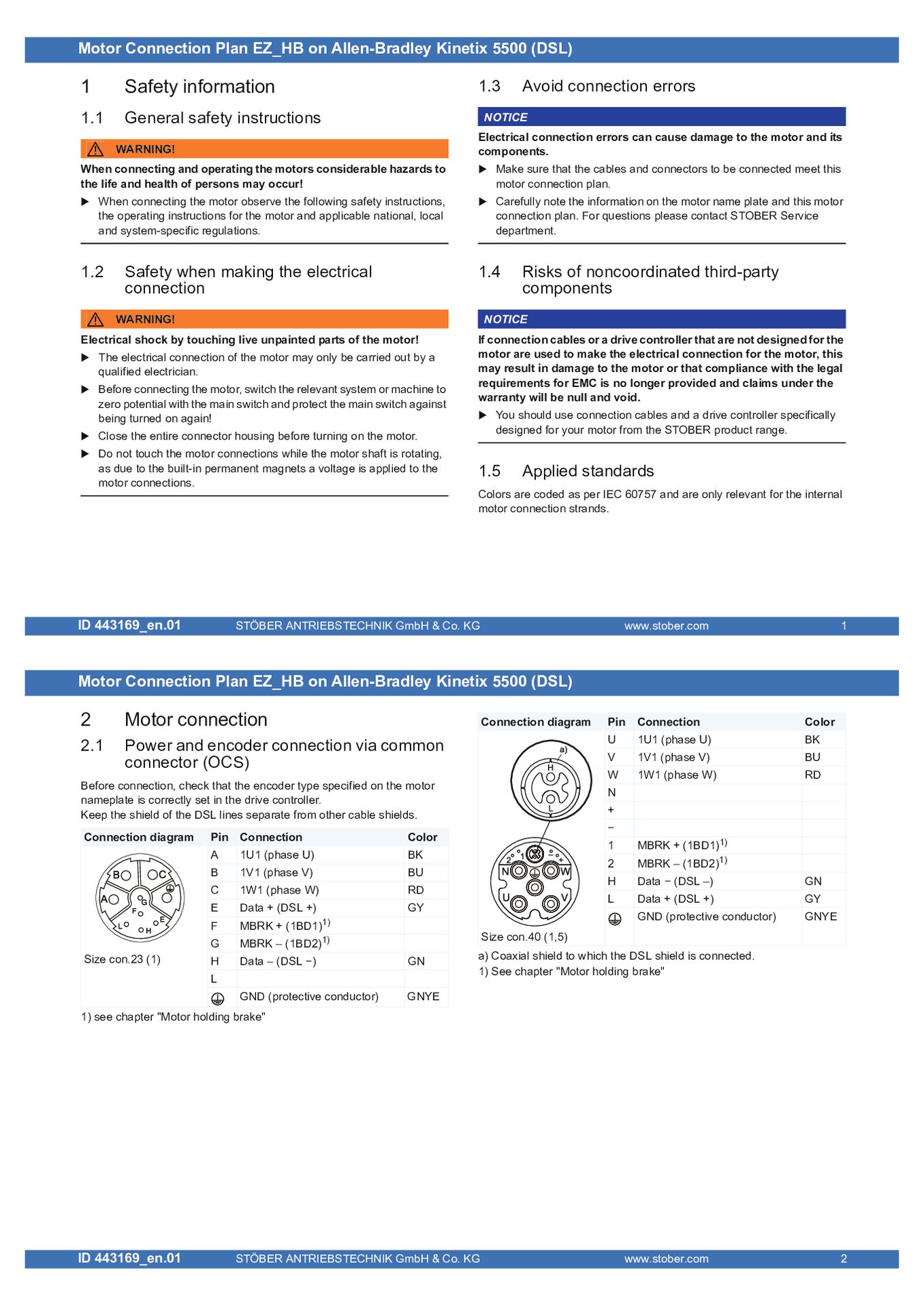

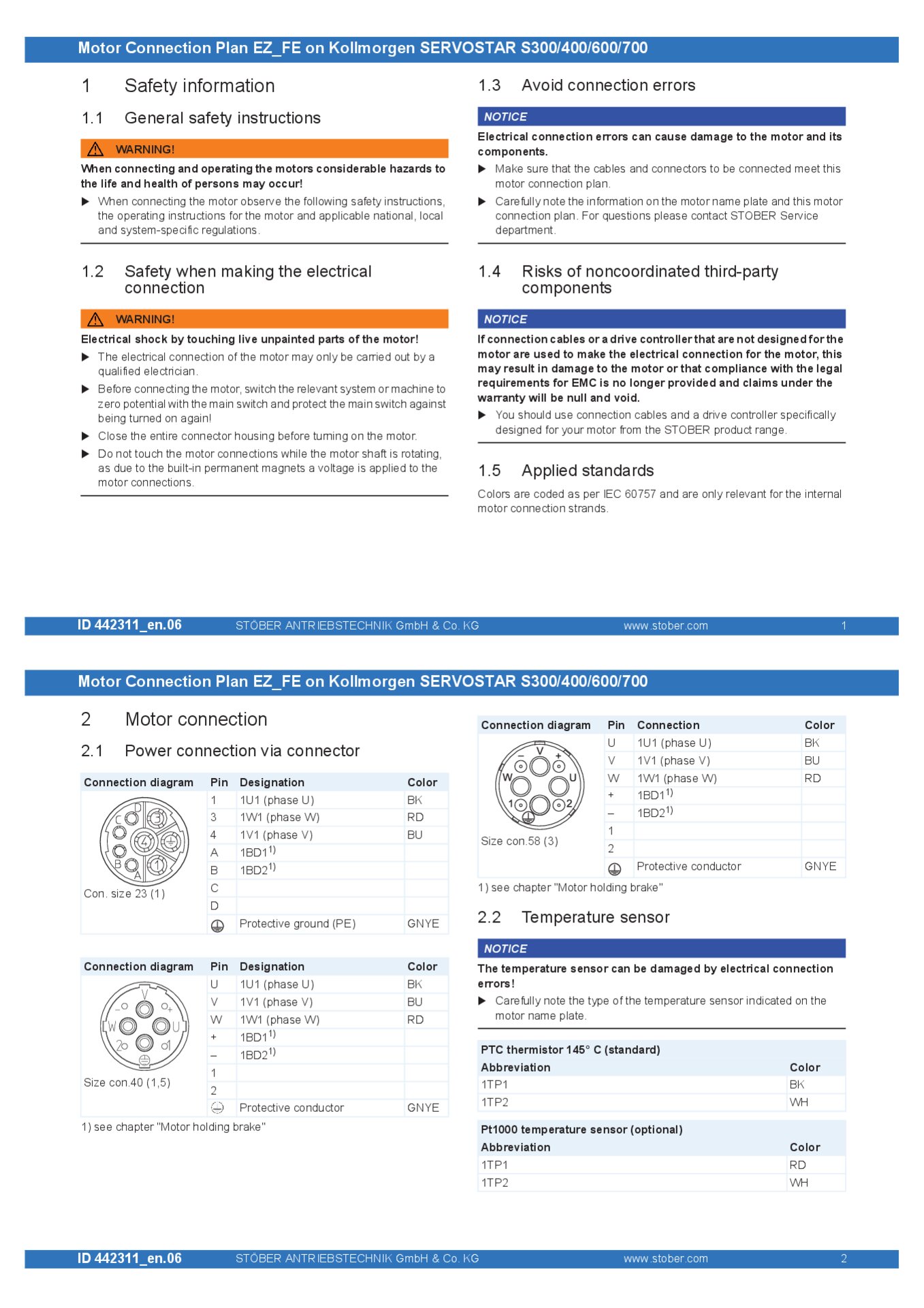

Connection plan EZ_GV on B&R ACOPOSMulti EnDat 2.2 OCS (Standard)Connection plan EZ_GV on B&R ACOPOSMulti EnDat 2.2 OCS (Standard)004430922018 06EN121.54 KB
Connection plan EZ_BA on SC6 EnDat 3 OCSConnection plan EZ_BA on SC6 EnDat 3 OCS014431742021 01EN172.22 KB
Connection plan EZ_BB on SI6 EnDat 3 OCSConnection plan EZ_BB on SI6 EnDat 3 OCS014431752021 01EN172.06 KB
Connection plan EZ_AA on SDS 5000Connection plan EZ_AA on SDS 5000044423052019 02EN172.96 KB
Connection plan EZ_AB on MDS 5000 Connection plan EZ_AB on MDS 5000 044423062019 02EN173.47 KB

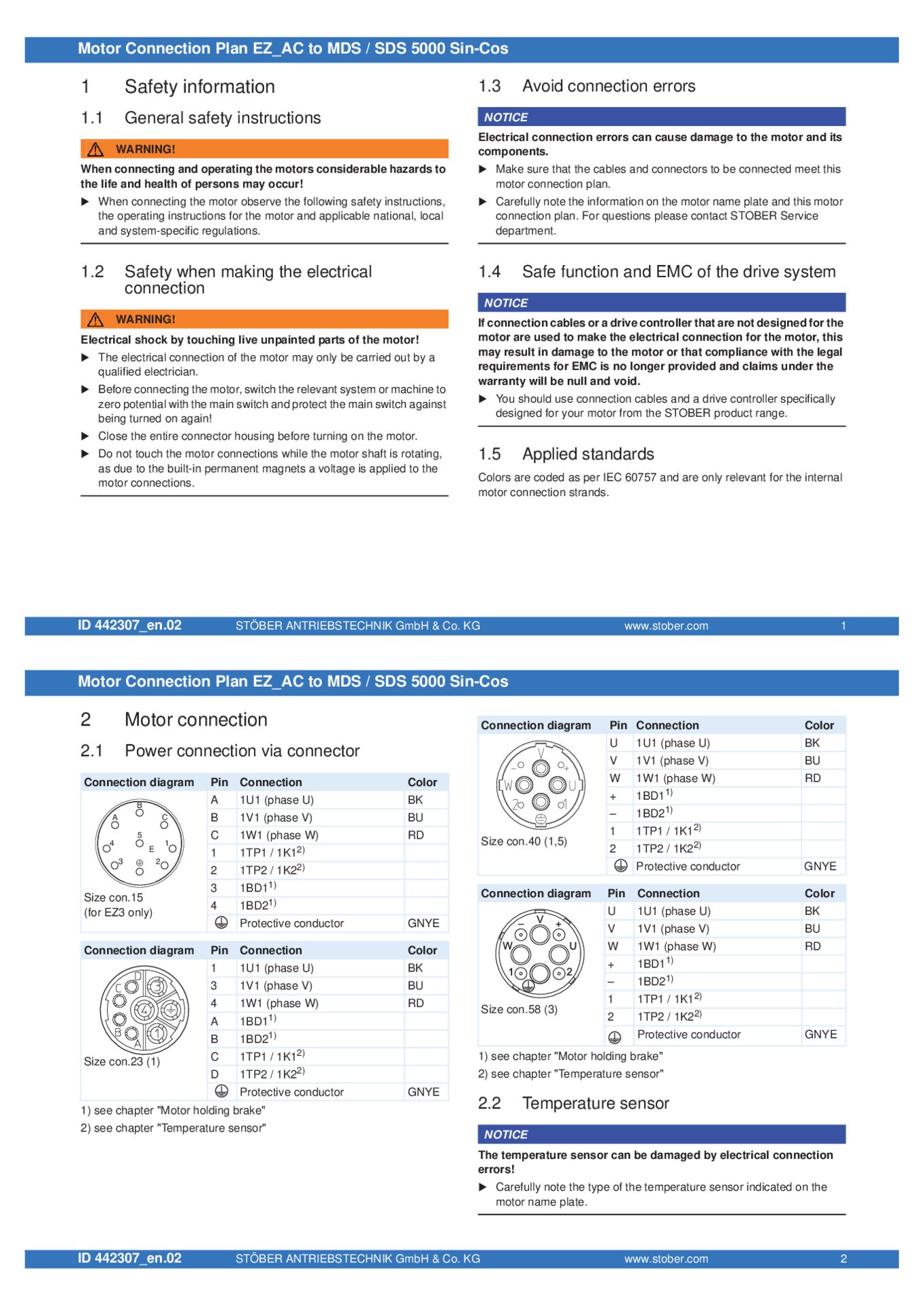

Connection plan EZ_AC on MDS 5000_ SDS 5000 Sin-CosConnection plan EZ_AC on MDS 5000_ SDS 5000 Sin-Cos024423072017 07EN76.48 KB
Connection plan EZ_FA on SDS 4000 compatibleConnection plan EZ_FA on SDS 4000 compatible044423082019 02EN143.66 KB
Connection plan EZ_AU on SC6Connection plan EZ_AU on SC6014430522018 07EN119.04 KB
Connection plan EZ_FG on B&R ACOPOSConnection plan EZ_FG on B&R ACOPOS044423132019 02EN157.61 KB
Connection plan EZ_AJ on SDS 5007Connection plan EZ_AJ on SDS 5007024426682019 02EN159.22 KB
Connection plan EZ_AK on SDS 5007 Sin-CosConnection plan EZ_AK on SDS 5007 Sin-Cos014426702017 07EN61.55 KB
Connection plan EZ_AL on SD6A02Connection plan EZ_AL on SD6A02014426722017 07EN67.71 KB
Connection plan EZ_AM on SD6 Sin-CosConnection plan EZ_AM on SD6 Sin-Cos024426742019 02EN152.12 KB
Connection plan EZ_GG on B&R Acopos EnDat 2.2 (Standard)Connection plan EZ_GG on B&R Acopos EnDat 2.2 (Standard)024426772018 06EN128.06 KB
Connection plan EZ_AP on SI6 digitalConnection plan EZ_AP on SI6 digital024427712018 07EN118.51 KB
Connection plan EZ_GS on SI6 compatibleConnection plan EZ_GS on SI6 compatible004430512017 11EN56.37 KB

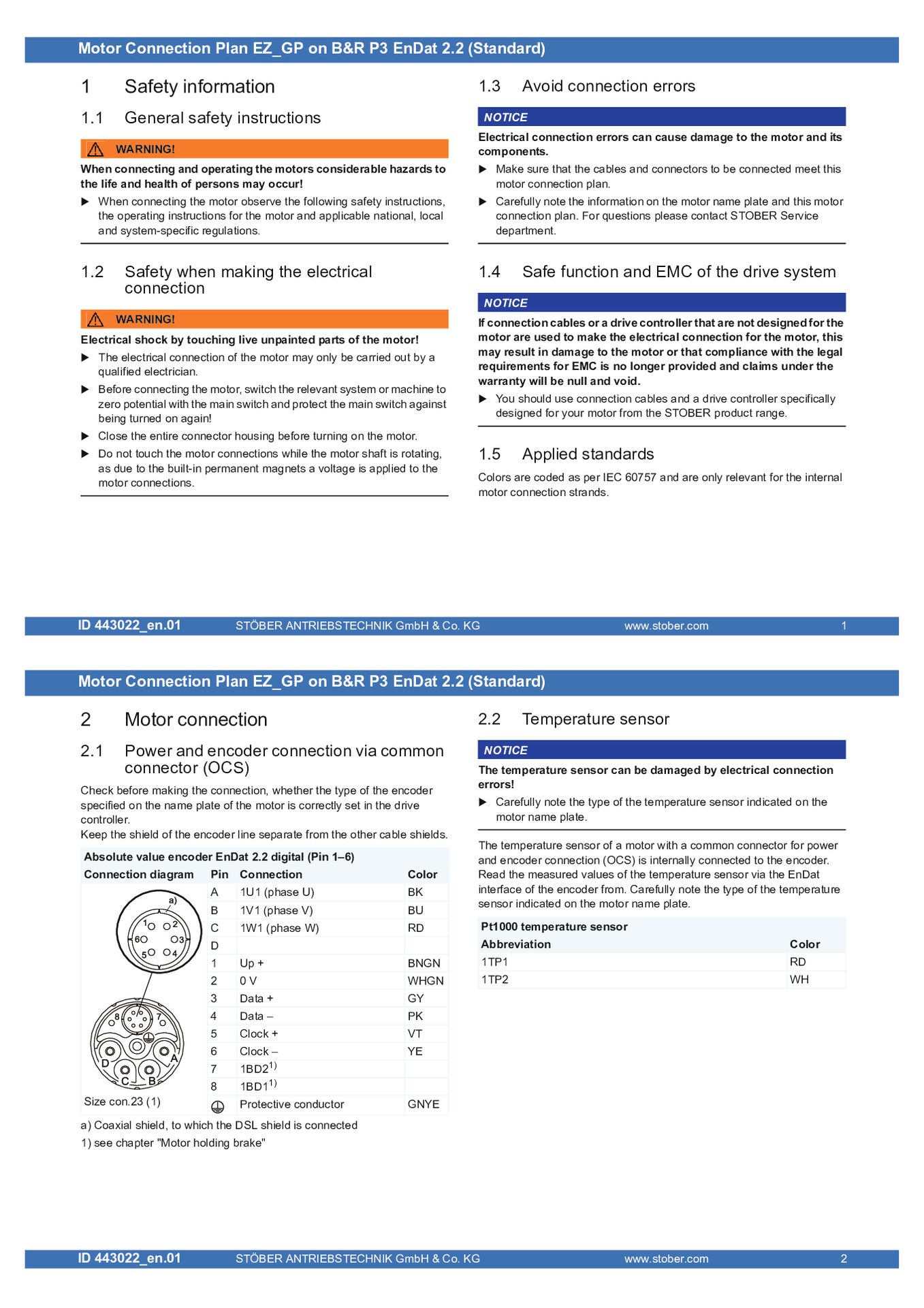

Connection plan EZ_GP on B&R P3 EnDat 2.2 (Standard)Connection plan EZ_GP on B&R P3 EnDat 2.2 (Standard)014430222018 06EN120.97 KB
Connection plan EZ_AF on MDS 5007Connection plan EZ_AF on MDS 5007024426652019 02EN159.14 KB
Motor Connection Plan EZ_FB to SDS 4000_CompatibleMotor Connection Plan EZ_FB to SDS 4000_Compatible024423092019 02EN139.58 KB

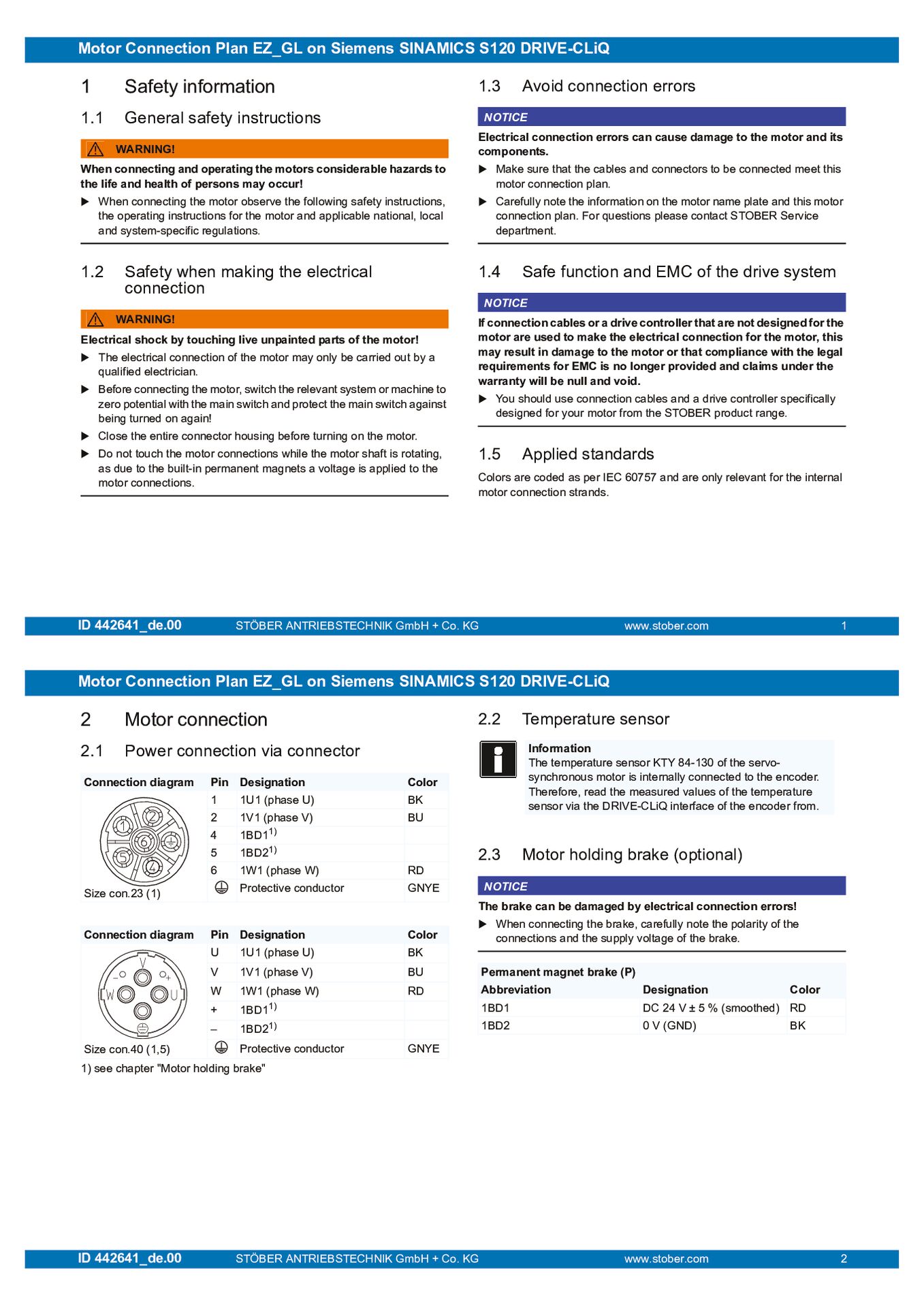

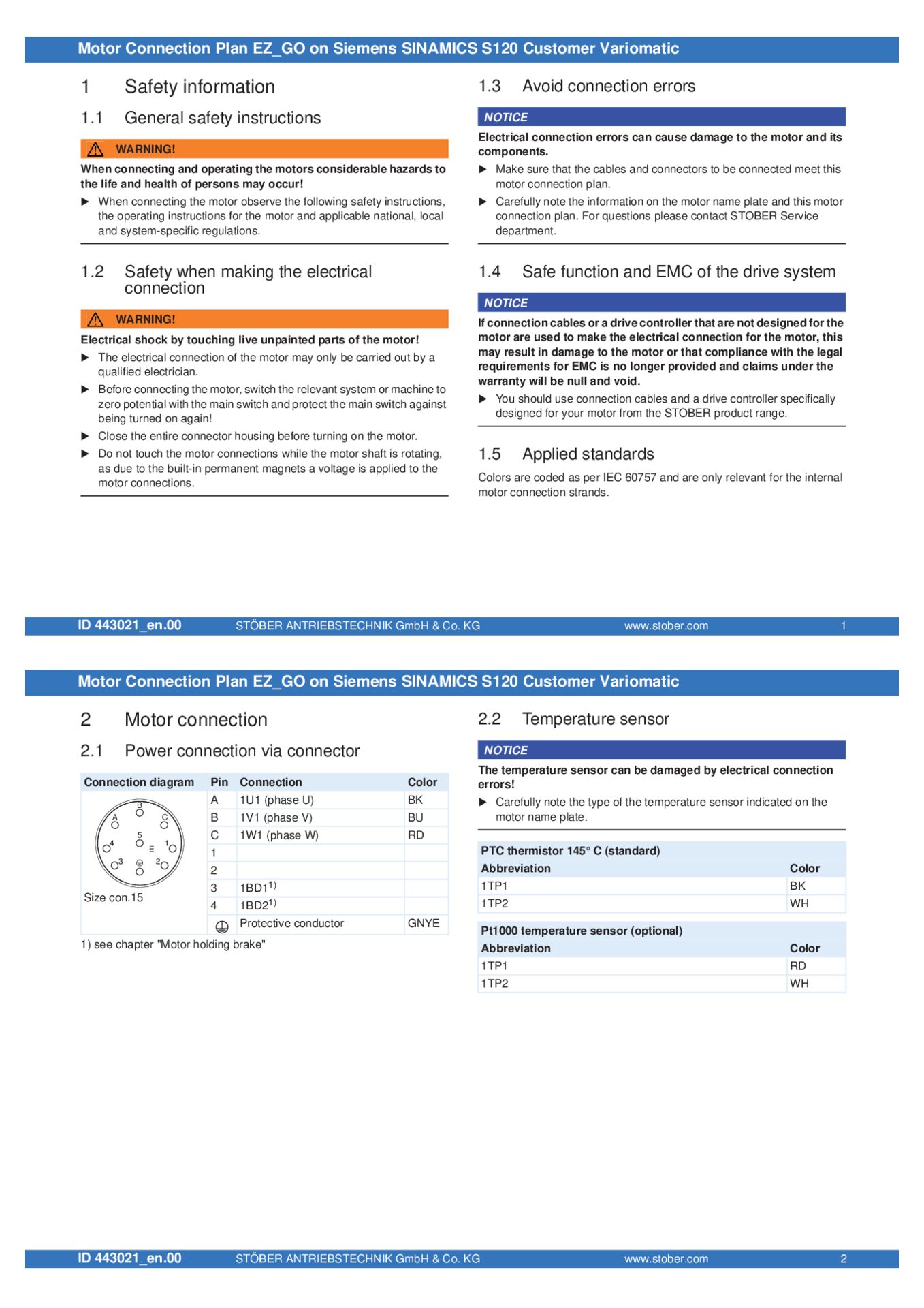

Connection Plan EZ_FJ on Siemens SINAMICS S120Connection Plan EZ_FJ on Siemens SINAMICS S120044423152021 03EN514.12 KB
Connection plan EZ_GY on B&R Acopos P3 EnDat 2.2Connection plan EZ_GY on B&R Acopos P3 EnDat 2.2004430952023 10EN220.08 KB

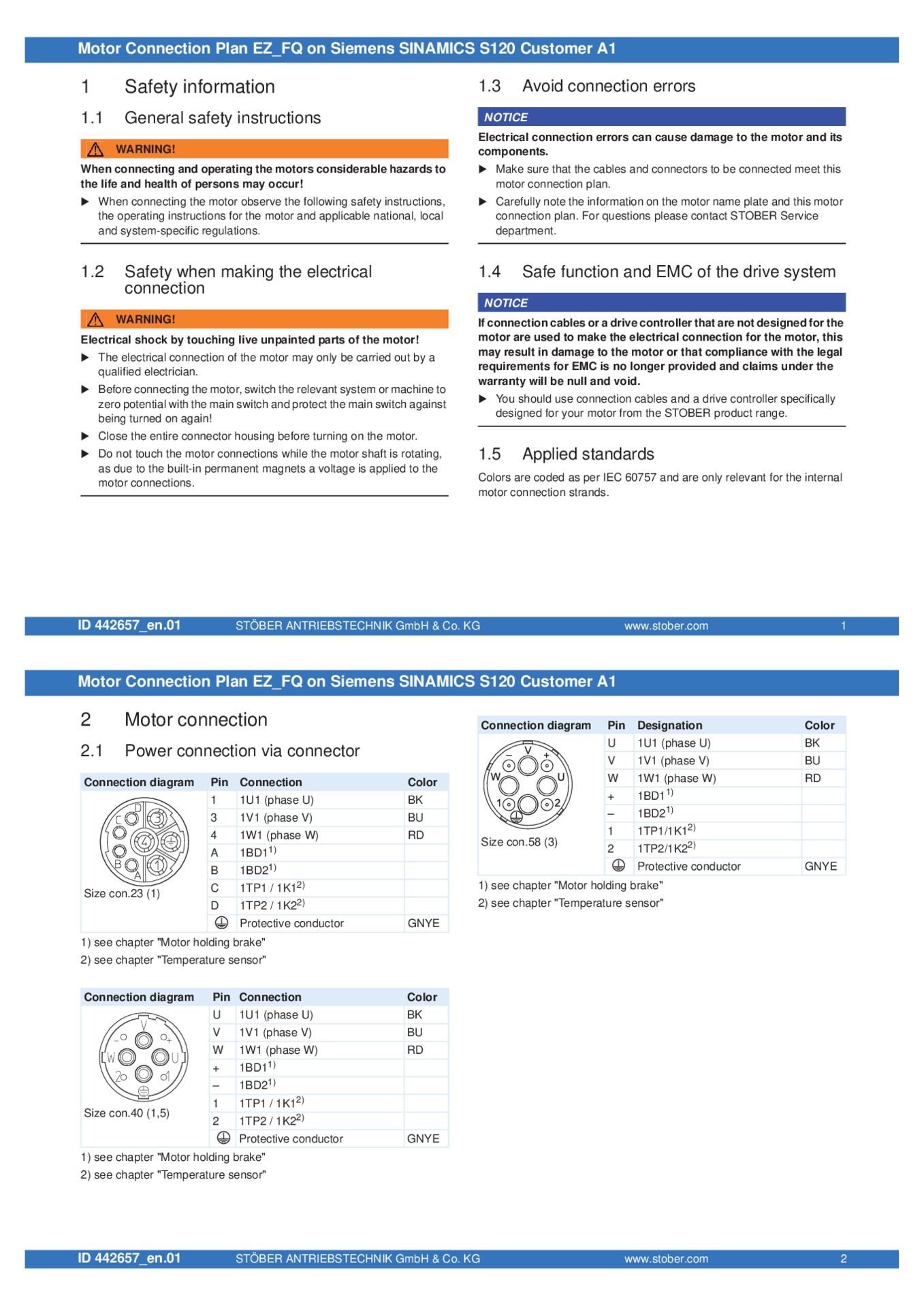

Connection Plan EZ_GQ on Sinamics S120 EnDat 2.2 (Customer Universal)Connection Plan EZ_GQ on Sinamics S120 EnDat 2.2 (Customer Universal)024430492023 07EN203.49 KB
Connection plan EZ_HO on Beckhoff AX8000 9-pConnection plan EZ_HO on Beckhoff AX8000 9-p004434522024 11EN168.96 KB
Connection plan EZ_FM on Beckhoff AX5000Connection plan EZ_FM on Beckhoff AX5000034423182020 02EN197.08 KB
Connection plan EZ_FP on MDS / SDS 5000 compatibleConnection plan EZ_FP on MDS / SDS 5000 compatible044423212019 02EN154.44 KB
Connection plan EZ_FR on MDS _ SDS 5000 compatibleConnection plan EZ_FR on MDS _ SDS 5000 compatible044423222017 11EN114.86 KB
Connection plan EZ_AE on SD6 Sin-CosConnection plan EZ_AE on SD6 Sin-Cos024424512019 02EN166.02 KB
Connection plan EZ_FV on B&R ACOPOSMultiConnection plan EZ_FV on B&R ACOPOSMulti024424442019 02EN158.02 KB

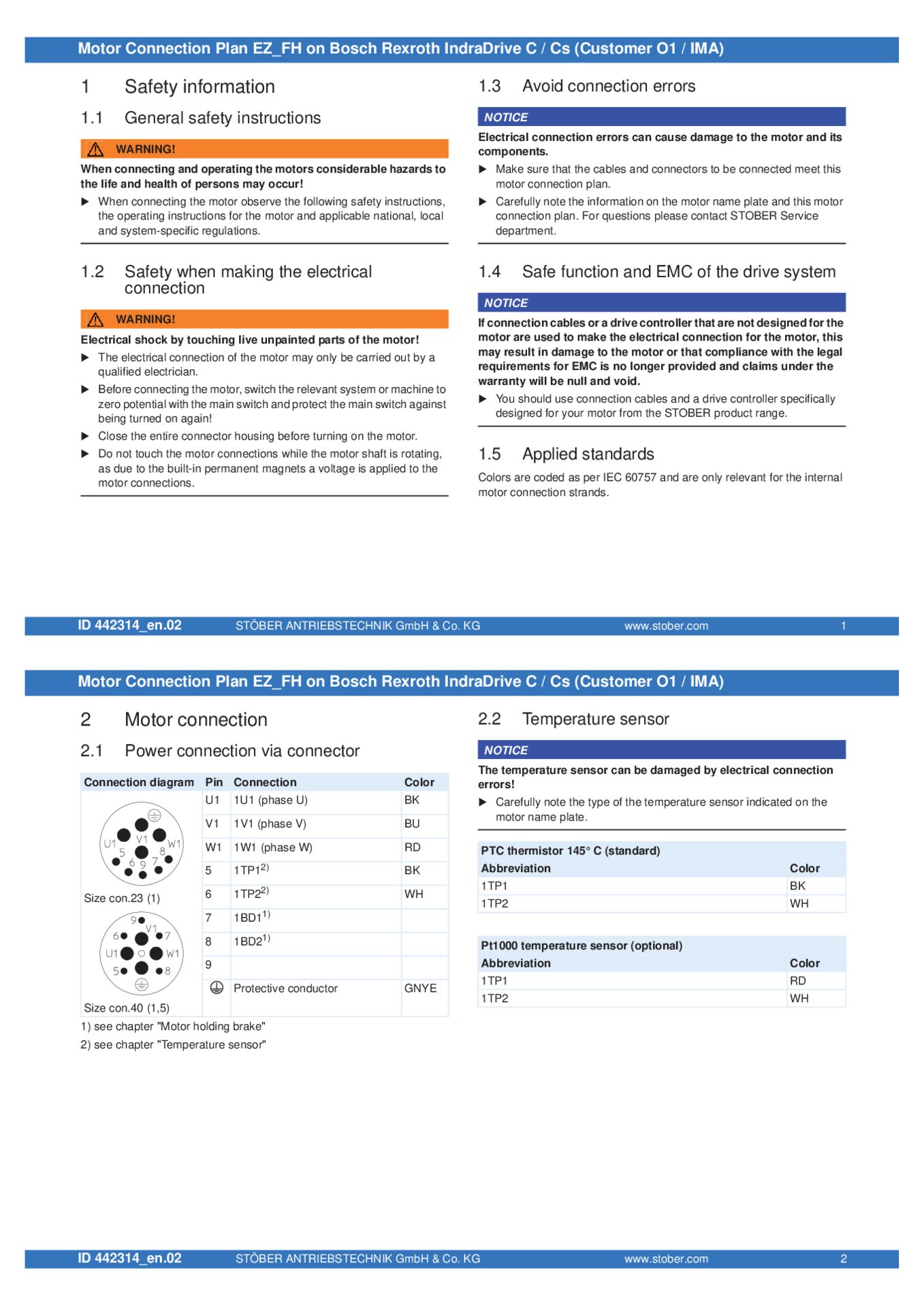

Connection plan EZ_FW on Bosch Rexroth IndraDrive CConnection plan EZ_FW on Bosch Rexroth IndraDrive C044424452017 06EN73.02 KB
Connection plan EZ_GB on MDS 5000 SDS 5000 Sin-Cos compatibleConnection plan EZ_GB on MDS 5000 SDS 5000 Sin-Cos compatible014424472017 11EN106.64 KB
Connection plan EZ_AD on SD6Connection plan EZ_AD on SD6014424502021 09EN194.53 KB
Connection plan EZ_AH on MDS 5007Connection plan EZ_AH on MDS 5007014426662017 07EN61.80 KB
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
The document you are looking for is not listed? Hint: Select "all languages".
TitleVersionIDDateLanguageSize / Type
Certificate Free of CCCCertificate Free of CCC344420722024 09EN309.97 KB
EU declaration of conformity synchronous servo motors and synchronous geared motors ED EK EZEU declaration of conformity synchronous servo motors and synchronous geared motors ED EK EZ024430892024 03EN73.57 KB
UK declaration of conformity synchronous servo motors and synchronous servo geared motors EZ ED EK LM UK declaration of conformity synchronous servo motors and synchronous servo geared motors EZ ED EK LM 004432972021 10EN71.46 KB
Certificate UL - cURus synchronous servomotors EZ EZS EZM EZHD EZHPCertificate UL - cURus synchronous servomotors EZ EZS EZM EZHD EZHP004430972016 12EN1.44 MB
